MINI-DIN RECEPTACLES
CONNECTORS & RECEPTACLES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
DIN RECEPTACLES (continued)

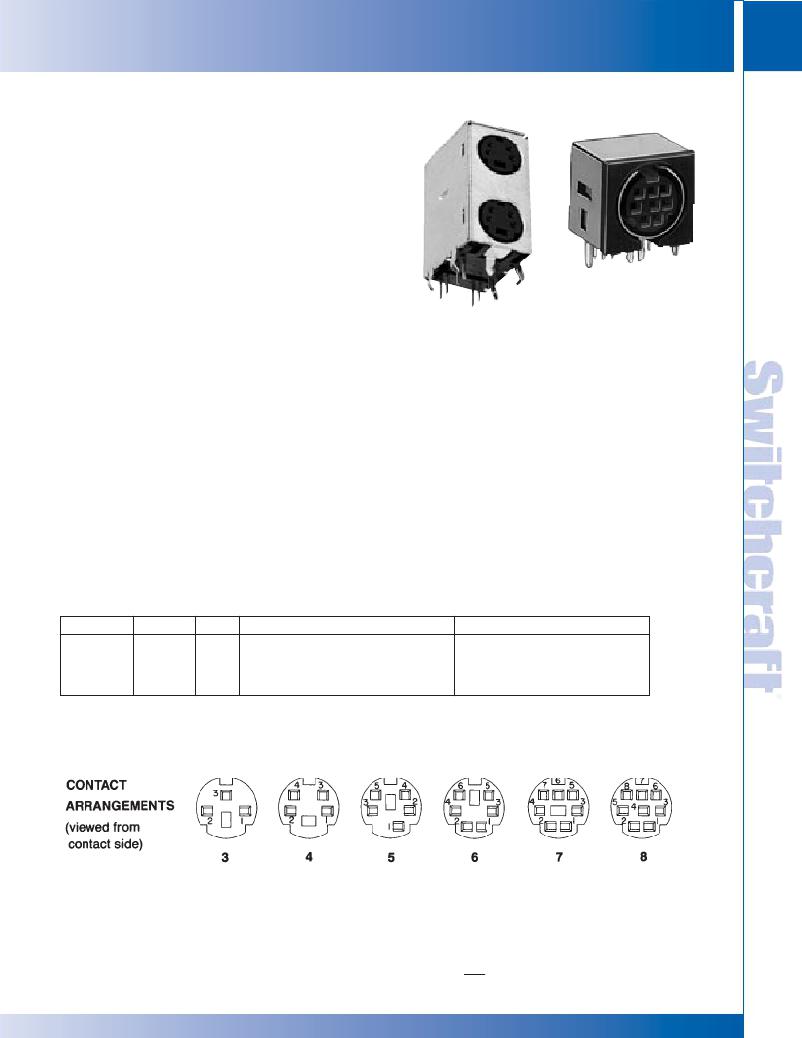

MINI-DIN RIGHT-ANGLE RECEPTACLES
Miniature DIN right-angle connectors are designed for
personal computer, video and data communications, medical
and instrumentation equipment and systems.
RIGHT-ANGLE, PC MOUNT RECEPTACLES
Available with 3 through 8 contacts, female only, receptacles
also have a standard (and separate) ground contact system.
Ground terminal can be straight or snap-in type. Snap-in
terminals are bifurcated to assure tight hold down on PC
board before, during and after soldering. Solder wicking
around the terminal strengthens the connection. Additionally,
PC terminals are staggered to assure more “hold down”
capability during soldering.
53
Receptacle/plug retention is “friction” type, and a separate
outer shield can be specified.
Series SMD*FRAX10: 3 through 8 contacts, female,
right-angle PC mount, straight ground terminal, and
no outer shield.
Series SMD*FRAX20: Same as SMD*FRAX10, except
with bifurcated snap-in ground terminal.
Series SMD*FRAX11: 3 through 8 contacts, female,
right-angle PC mount, straight ground terminal, and
outer shield.
Series SMD*FRAX21: Same as SMD*FRAX11, except
SPECIFICATIONS
Ratings: 1A, 100 VAC; 2A, 12 VDC.
Insulation Resistance: 50 M ? minimum
Dielectric Strength: 250 VDC for 1 minute.
Contact Resistance: 30 m ? maximum
Insertion/Withdrawal Force: 0.8 to 5 kilograms
Withdrawal Force: 0.8 to 4 kilograms
Contacts/Terminals: Copper alloy, silver or gold-plated
Ground Terminal: Copper alloy, nickel-plated.
External Shield: Copper alloy, solder-coated.
Body: Black molded thermoplastic, UL 94V-0.
with snap-in ground terminal.
Series DMD*FRAX111: Dual stacked miniature DIN
connectors, available in 4, 5, 6, and 8 contacts. Shielded
and non-shielded versions available.
Dimensions: .552" (14 mm) wide x .502"
(12.8 mm maximum depth x .642" (16.3 mm) height,
including terminals.
MINI-DIN RIGHT-ANGLE RECEPTACLES PART NUMBER SCHEME
Series Contacts
SMD-Single Insert #:
Style
FRA
Shield/Ground
110: Unshielded, no snap-in ground
Optional Mounting Screw Hole
A: Adds screw hole
DMD-Dual
3-8
111: Shielded, no snap-in ground
Blank: None
120: Unshielded, snap-in ground
121: Shielded, snap-in ground
Note: Dual available in 4,5,6, and 8 only
Note: Snap-in ground available on single only
Note: Optional mounting screw hole available on dual only
Note: Special order only, contact factory for details
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
